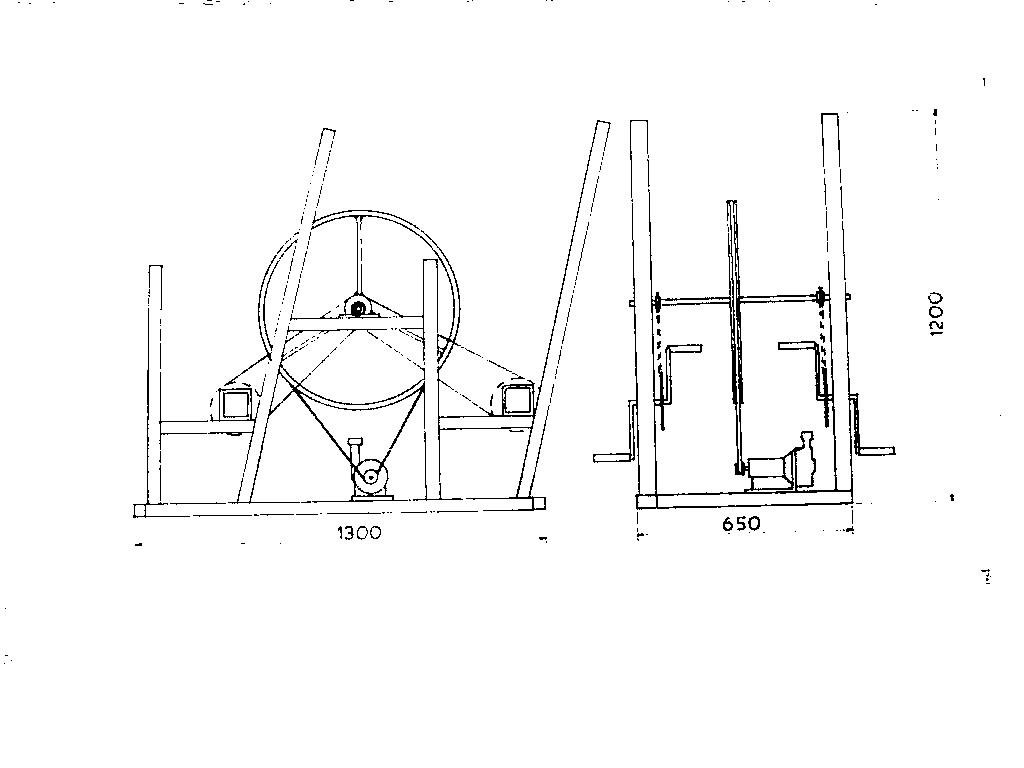

FOUR-MAN PEDAL CENTRIFUGAL WATER PUMP – ASSEMBLY

STUART TURNER MODEL 25 PUMP WITH EATON VEE BELTING DRIVE AND BALL-BEARING MOUNTED LAYSHAFT DRIVEN BY 4 OPERATORS THROUGH BICYCLE CHAINS AND SPROCKETS
