This guide is intended to assist those responsible for procuring emergency food stores in selecting an appropriate system. It outlines the factors to be considered, most of which have been more fully discussed in Part 1, and provides a decision tree to help in making a choice. Manufacturers of structures are listed and their products described, under four categories.
A Warehouses B Frameless buildings C Framed structures with flexible cladding D Frameless flexible systems.
This guide assumes that the structures, or critical components of them, are imported; however, there will be times when structures can be locally manufactured, thereby probably reducing the procurement time.
Information on examples of five of the most important types of store is summarized in Table 6. From this it is clear that where speedy procurement and erection of a store is essential, tarpaulins (for bag stacks), tents and plastic-clad stores can be obtained rapidly by air and erected quickly. Because these stores are relatively light-weight and because they have simple foundations or ground anchors, they are also easy to relocate. Their drawbacks are that they are difficult to manage and vulnerable to theft because the canvas or plastic sheet can be easily cut open; hence they require security fences and watchmen. They are also vulnerable to water (both ground moisture and flooding) in wet weather, and dunnage or pallets should be regarded as essential. They are easily damaged by wind and precautions against this are needed.
At railheads, ports or where an emergency is prolonged, more permanent storage with concrete damp-proofed floors is appropriate. These stores (whether warehouses or frameless buildings) are easier to manage and more secure. However, they are slow to procure and erect and not easy to relocate. Construction often requires expatriate supervision.
Costs of emergency storage are considered in two ways. 'Capital' costs for imported stores include packing, freight, insurance, customs' clearance and erection costs as well as the ex-works price of the structure. These 'once and for all' costs can be spread over the life of the structure and with the appropriate addition for interest are then called 'annual' costs. If warehouses are utilized for their whole working life, their annual costs (see Table 6) are much lower than tarpaulin annual costs, for example. But for a short emergency of, say, one year's duration this is not so. The 'break-even' point will depend on factors unique to each individual emergency. Where a warehouse has a turnover of relief food once every two months and the emergency lasts for 4-6 years, then depending on management, the price of relief food, the losses saved, etc., the annual costs for warehouse storage can be lower than tarpaulin storage. (For more details of costs see Appendices 9 and 10).
Table 6: Procurement period, capital
and annual costs per tonne for different
structures
The following questionnaire and worked example in Table7 is based on one transit store but could be applied to a whole emergency distribution system of port store, regional stores and district stores.

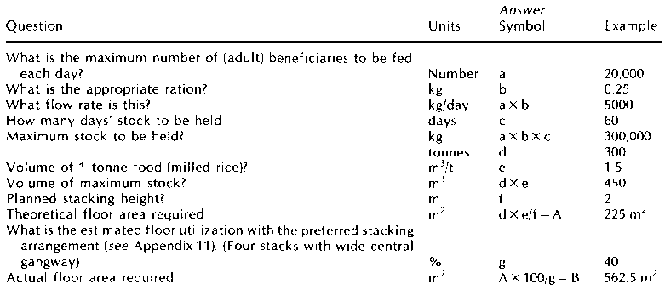

Table 7: Store size calculations
When the actual required floor area, B, has been calculated, the warehouse dimensions can be determined. For economy these should be chosen from the supplier's standard range. Thus, if a 15 m span is standard, length required is 562.5 /15 = 37.5 m. The nearest multiple of the standard bay length may then be selected, e.g. 39 m for 3 m bays.
For tarpaulin quantities it is economical to order standard sizes of sheet, e.g. 7.5 x 10 m. Using one as the ground sheet, allowing 1 m margin all round, this will support a stack of 5.5 m x 8 m x 2 m high as before.
|
Then stack volume |
= 88 m³ |
|
Stack weight (calculated as rice) |
=88 /1.5 tonnes |
| |
=59 tonnes. |
Two further tarpaulins 7.5 x 10 m each will easily cover the stack allowing for 1m overlaps. Hence a total of three will be required for a 2 m high stack of 59 tonnes.

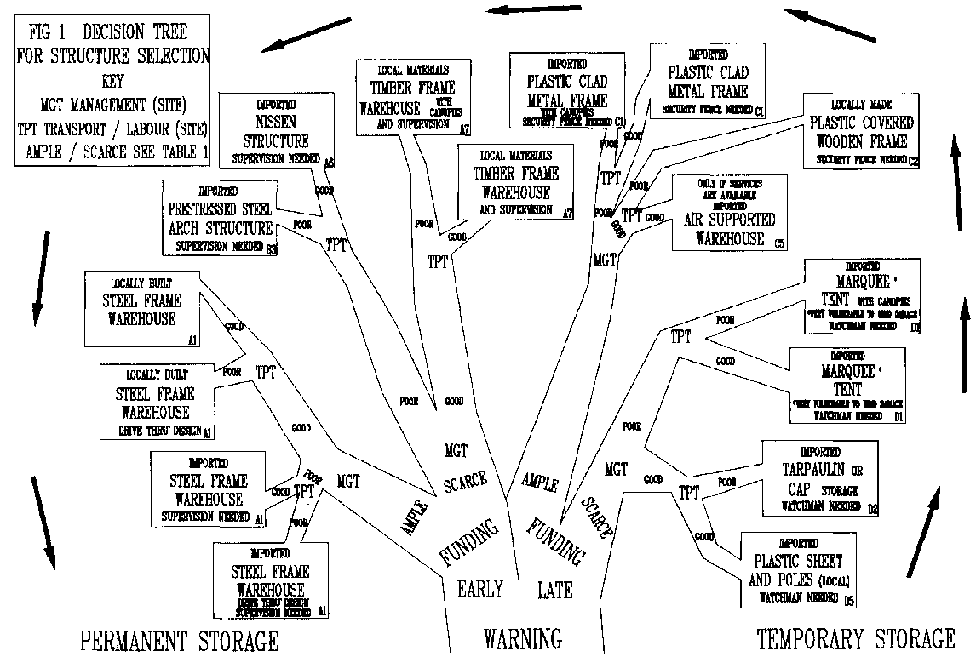

In Section Storage operations it is shown that temporary stores are preferable where speed is essential, but more permanent stores are easier to manage. From Section Storage costs a guide to 1987 costs is available and in Section What size of structure to order a simple method of calculating store size is suggested. The decision tree (see Figure 1, p. 22) allows all these factors to be taken into account and in addition takes account of the following priorities in order of importance:
A: Is the warning of the emergency early or late?
If the warning is early, use the left-hand branch where more permanent structures, either local or imported, are feasible. If the warning is late, more temporary storage systems must be employed. However, the food store only has a function once a flow of relief food supplies is established, and the assessment of urgency should take into account the time needed to achieve this.
B: Is funding ample or scarce?
Many relief agencies can command appropriate funds but this priority is included to help keep capital costs in mind. For example, plastic-clad stores are about £56 per tonne stored while tarpaulins are £11 and therefore can, in the short term, afford five times as much protection for the same expenditure.
C: Is site management good or poor?
Branches stemming from poor management include the decision that imported supervision will be needed for store erection. Branches stemming from good management embrace difficult-to-manage systems like cover and plinth (CAP) storage and air-supported warehouses.
D: Is site transport and labour availability good or poor?
Branches stemming from poor transport/labour include facilities to speed up the turn-round of lorries. Hence, for example, drive-through stores or stores with canopies are recommended.
In the majority of food-relief emergencies warnings are late but there is ample funding; on-site management is usually good but in our experience transport is often poor. In this case the locally made plastic-covered wooden frame structure is ideal. If such structures are not easily available locally, imported plastic-clad structures should be used. Whatever the type of preferred store, selected by means of Figure 1 or otherwise, it is recommended very strongly that IN EVERY EMERGENCY STORAGE
SITUATION AS AN INSURANCE AGAINST DELAYS AND AS A FIRST-AID MEASURE, TARPAULINS SHOULD BE PURCHASED AND DESPATCHED BY AIR TO COVER THE INITIAL STORAGE REQUIREMENT. THE PROCUREMENT OF OTHER STRUCTURES FOR THE TOTAL REQUIREMENT CAN THEN PROCEED NORMALLY.
In dry weather additional storage can be obtained with temporary bag stacks (covered with tarpaulins). This is particularly useful at intermediate storage centres between port and distribution points (Friendship, 1987).
Figure
Product details, addresses, foundation descriptions, freight and price data will be found under the following headings:
A Warehouses
B Frameless buildings
C Framed structures
with flexible cladding
D Frameless flexible systems
The lists of suppliers are not comprehensive; inclusion or omission of a supplier does not represent a recommendation or criticism of the company or its product. All addresses are in the United Kingdom unless otherwise stated.
|
A Warehouses |
|
|
Information |
Also |
|
given for |
supply |
|
each type |
types |
|
ARD Brooker Engineering Ltd. |
A1 |
A2 |
|
Conder Export Buildings Ltd. |
A1 | |
|
Coseley Insulation Products Ltd. |
A1 | |
|
Dexion Ltd. |
A3 | |
|
Machinery & Building Exports Ltd. (600 Group) |
A6 |
A5, B3 |
|
Naylor Buildings Ltd. |
C1 |
A1, A6 |
|
Powys I Industrial Buildings Ltd. |
A3 | |
|
Presco International Ltd. |
A3 | |
|
John Reid & Sons (Strucsteel) Ltd. |
A4 |
A1 |
|
Rent-a-Unit Mexborough Ltd. |
A1 | |
|
Ward Brothers (Sherburn) Ltd. |
A1 | |
|
J Wareing & Son (Wrea Green) Ltd. |
A1 | |
Sub-categories:
A1 Traditional warehouses, with or without drive-through facilities or raised floors and shelter canopies for easy unloading/loading bags from lorries
A2 Warehouses with retaining walls take bulk grain and, depending on storage period, will require aeration of stock
A3 Warehouses similar in appearance to A1 when built, but unconventional in detailed design; includes types with frames fabricated on site, and types with prefabricated cladding sections
A4 Emergency design warehouse, see Appendix 8.
A5 Foldaway type, requires crane
A6 Nissen type, semi-circular cross-section
|
ARD BROOKER ENGINEERING LTD. | |
|
Address: |
Goldicote Bridge |
| |
Banbury Road |
| |
Stratford-upon-Avon |
| |
Warwickshire |
| |
CV37 7NL |
|
Telephone: |
0789 740282 |
|
Telex: |
312255 |
Product details: Steel portal-frame buildings, especially for
agricultural applications.
Details as required.
|
Foundations |
Conventional. |
|
Example |
No details available. |
|
CONDER EXPORT BUILDINGS LTD. | |
|
Address: |
Wellington Road |
| |
Burton-on-Trent |
| |
Staffordshire |
| |
DE14 2AA |
|
Telephone: |
0283 45377 |
|
Telex: |
34656 |
Product details Steel portal-frame buildings with metal-clad or locally supplied block wails.
Standard spans: 18 m, 24 m, 30 m; any length.
Doors and
ventilation: any type as required.
|
Foundations |
Concrete pad. |
|
Price |
Competitive over 1500 m². |
|
Erection |
Crane or derrick pole required. |
|
Example |
For a 30 x 50 m building with crew of three men + crane driver: Steel work, 2 weeks, total with cladding, 4- 5 weeks depending on skill of labour. |
|
Supervisor |
£800 per week + expenses. Full erection crew can also be provided if required. |
|
COSELEY INSULATION PRODUCTS LTD. | |
|
Address: |
Hardwick View Road |
| |
Holmewood Industrial Estate |
| |
Holmewood |
| |
Chesterfield |
| |
Derbyshire |
| |
S42 5SA |
|
Telephone: |
0246 855070 |
|
Telex: |
54219 Cosins G |
|
Product details Lattice steel portal frame, clad in laminate of steel/polystyrene/steel 50 mm thick to give lightweight structural rigidity, and high thermal performance. | ||
|
Spans: 10-110 m; any length, eaves height 3-7.5 m. | ||
|
Doors: any type as required. | ||
|
Ventilation: incorporated in standard design. | ||
|
Foundations |
Concrete beam, metal skids or self-supporting bases. | |
|
Example |
Store: |
3 m x 10 m x 30 m. |
| |
Price: |
£32,400 ex-works, doors extra. |
| |
Shipping measurement: |
greater than for steel clad structure. |
| |
Delivery: |
3-4 weeks. |
| |
Erection time: |
within 5 days, depending on base. Small crane or lifting equipment, 1.5 t capacity required. |
|
Supervisor |
£15 per hour + expenses. |
|
DEXION LIMITED | |
|
Address: |
Maylands Avenue |
| |
Hemel Hempstead |
| |
Herts. |
| |
HP2 7EN |
|
Telephone: |
0442 42261 |
|
Telex: |
825794 |
|
Facsimile: |
0422 217145 |
Product details Steel-framed buildings in which the frames are
fabricated on site from galvanized-steel slotted angle and channel. Steel or
aluminium-cladding. Spans from 16 ft (4.9 m) to 40 ft (12.2m) in 4 ft (1.2 m)
increments; height from 8 ft (2.4 m) to 14 ft (4.3 m) in 2 ft (0.6 m)
increments; any length. Doors: normally side-hung, aluminium plywood or
steel.
Ventilation: at eaves by leaving out-cladding; ridge ventilation if
required.
|
Foundations |
Light slab with column bases cast into concrete block. |
|
Example |
No details available. |
| |
Note that Dexion slotted angle is available in many countries. |
|
Supervisor |
Available at £200 per day, plus expenses. |
|
Note: |
A kit form building which can be erected in about half the time of the above type is under development. |
|
MACHINERY AND BUILDING EXPORTS LTD. (600 GROUP) |
|
|
Address: |
23/25 Sunbeam Road |
| |
London |
| |
NW10 6JP |
|
Telephone: |
01 995 7662 |
|
Telex: |
922569 |
Product details* Nissen building - curved steel galvanized Tee ribs with galvanized pressed steel purling. Clad with corrugated sheeting. Widths 5 m or 7.5 m with centre heights 3 m and 3.75 m respectively; any length.
Doors: double timber 3 x 2.75 m
Ventilation: ridge ventilators can be provided, also dormer windows.
Foundations: Strip foundations are advisable, drawings provided; railway sleepers have been used.
|
Example |
Store: |
3.75 m high x 7.5 m wide x 22 m long. |
| |
Volume: |
480 m³; capacity at 50% utilization, 160 t. |
| |
Price: |
£3,653 ex-works. |
| |
Shipping: |
7 bundles weighing 2960 kg. |
| |
Delivery: |
ex-stock, to 7 days for a large order. |
Erection time: 5 days with supervisor and 3 helpers. A scaffolding tower is recommended for erection.
Supervisor
£90 per day + expenses.
|
POWYS INDUSTRIAL BUILDINGS LTD. | |
|
Address: |
Pentre |
| |
Near Nesscliffe |
| |
Shrewsbury |
| |
Shropshire |
| |
SY4 1 BP |
|
Telephone: |
0743 81495 |
|
Telex: |
35438 Telcom G (POWYS BUILD) |
Product details All steel lightweight fully clad sectional panels when assembled give structure similar characteristics to a portal frame building. Spans 5.2-9.1 m; eaves height 2.1 m or 3.6 m; lengths as required in increments of 1.8 m.
Doors: steel hinged doors as standard.
Ventilation: at eaves.
|
Foundations |
Perimeter foundations required. |
|
Example |
Store: 7 ft (2.1 m) x 17 ft (5.2 m) x 24 ft (7.3 m) |
| |
Price: £16,000 ex-works |
| |
Shipping weight: 1 t approximately. |
| |
Delivery: 14 days. |
| |
Erection time: 2-3 days with three helpers. |
|
Supervisor |
Available at approximately £150 per day + expenses. |
|
PRESCO INTERNATIONAL LTD. | |
|
Address: |
Small Products Division |
| |
Delta Way |
| |
Cannock |
| |
Staffordshire |
|
|
WS11 3BE |
|
Telephone: |
05435 2671 |
|
Telex: |
334723 Facsimile: 05435 72710 |
|
Product details Steel-framed building with prefabricated wall and roof panels clad with galvanised corrugated steel. | |
|
Span: |
17 ft (5.2 m), multi-span designs available; eaves height 12 ft (3.6 m); length from 18 ft (5.5 m) in 6 ft (1.8 m) increments. |
|
Doors: |
steel, hinged, full height of building. |
|
Ventilation: gap at eaves only. | |
|
Foundations |
Concrete column bases required. |
|
Example |
Store: |
SU/DD/30. 12 ft (3.6 m) x 17 ft (5.2 m) x |
30 ft (9.1 m) |
| |
Price: |
£2,133 ex-works. | |
| |
Shipping weight: |
2064 kg. | |
| |
Delivery: |
ex-stock or under 10 days. | |
| |
Erection time: |
1 day with four men. |
|
|
Supervisor |
Not required. Construction manual provided. | ||
|
JOHN REID & SONS (STRUCSTEEL) LTD. | |
|
Address: |
Reid Street |
| |
Christchurch |
| |
Dorset |
| |
BH23 2LT |
|
Telephone: |
0202 483333 |
|
Telex: |
41260 REID G |
|
Facsimile: |
0202 47013 |
Product details Steel portal-framed building, designed for containerisation and ability to be manhandled. Supplied as basic structure with Aluzinc coated roof but without wall cladding or doors; or with Aluzinc coated steel walls and doors 2 x 2 m at each end.
Standard size 2.5 m to eaves and 11 m wide, 29.5 m long in five bays of 5.9 m. Designed for wind loads of 60 kg/ m²
Capacity with 60% utilisation of volume is 400 tonnes of bagged maize.
Doors: 2 m x 2 m sliding type.
Ventilation: ventilated ridge capping suggested, £90 extra.
|
Foundations |
The building can be staked to the levelled ground with steel pins, bolted onto existing slabs or bolted onto purpose-made slabs or footings. |
|
Example |
Standard building as above. |
|
Price |
Ex-works for four basic structures loaded into container is £1 5,230. Ex-works for three clad structures loaded into container is £18,940. |
| |
This is equivalent to £6,313 per-clad structure. |
|
Shipping |
Basic structure fits four per 20 ft container, weight 4.2 t. |
| |
Structures with walls clad and doors fit three per container, weight 6.5 t. |
|
Delivery |
2-6 weeks. |
|
Erection time |
3-5 days for supervisor and four helpers for the basic building. 7-10 days for the enclosed building. No power tools or equipment needed; cost of hand tools £30. |
|
Supervisor |
Available at £100-150 per diem plus expenses and air fare. |
|
(For design details see Appendix 8). | |
|
RENT-A-UNIT MEXBOROUGH LTD. | |
|
Address: |
Edward House |
| |
Whitelea Grove |
| |
Mexborough |
| |
South Yorkshire |
| |
S64 0Qp |
|
Telephone: |
0709 585591 |
|
Telex: |
547657 |
Product details Portal-frame building with rectangular hollow section frames and galvanized corrugated steel-cladding.
Span: 5.3-9.1 m; eaves 3.75 m; length as required.
Doors: hinged, 3.15 m high. Roller shutter doors also available.
Ventilation: gap at eaves.
|
Foundations |
Detail drawings supplied. |
|
Example |
Store: 3.75 m high x 9.1 m wide x 30.8 m long. |
| |
Price: £11,242 ex-works. |
| |
Shipping: 9 bundles. Total weight 8.55 t. Volume 31.1 m³. |
| |
Erection time: 10 days with supervisor and 3 helpers. No crane required. |
|
Supervisor |
Available at £800 per week + expenses. Alternatively, supervisor training would be provided in the United Kingdom at no charge. |
|
WARD BROTHERS (SHERBURN) LTD. | |
|
Address: |
Widespan Works |
| |
Sherburn |
| |
Malton |
| |
N. Yorks. |
|
Telephone: |
0944 70421 |
|
Telex: |
52354 Facsimile: 0944 70777 |
Product details Steel portal-frame buildings with spans from 12 m to 36 m. Also farm kit buildings with spans from 9 m to 18 m.
Doors: Top-hung sliding doors, or as required.
Foundations Conventional.
Example: No details available.
|
J WAREING & SON (WREA GREEN) LTD. | |
|
Address: |
Wrea Green |
| |
Preston |
| |
Lancashire |
| |
PR4 2NB |
|
Telephone: |
0772 628159/682914 |
Product details Steel portal-frame buildings with asbestos or
steel cladding, supplied in kit form.
Span and eaves height as required;
length normally in multiples of 15 ft or 20 ft (4.6 m or 6.1 m).
Doors: can be supplied at extra cost.
Ventilation: can be supplied.
|
Foundations |
Concrete pad for each column; 1 m³ or as required by local conditions or regulations. | |
|
Example |
Store: |
10 ft high x 30 ft wide x 45 ft long (3 m high x 9.2 m wide x 13.8 m long) |
|
|
Price: |
£2,175 ex works. (Doors extra) |
| |
Delivery: |
1 month |
| |
Erection time |
2-24 days depending on experience. Require 3-4 men, light crane or digger (alternatively pole and chain blocks) |
|
Supervisor |
Not available; instructions and a video can be provided. |
|
|
B Frameless buildings | |
|
Information |
Also |
|
given for |
supply |
|
each type |
types |
|
Ardenlea Enterprises Ltd. |
B3 | |
|
Conport Structures Ltd. |
B3 | |
|
Machinery & Building Exports Ltd. |
A6 |
B3 |
|
Monatta Ltd. |
B2 | |
|
Quadrem Buildings Ltd. |
B3 | |
|
Terrapin Ltd. |
B1 | |
Sub-categories:
B1 Terrapin type
B2 Terryboard experimental panels
B3
Prestressed modular, no-frame type
B4 Steel silos with aeration ducts or
plenum floor
|
ARDENLEA ENTERPRISES LIMITED | |
|
Address: |
Aylesbury Road |
| |
Princes Risborough |
| |
Aylesbury |
| |
Buckinghamshire |
| |
HP17 0JP |
|
Telephone: |
08444 5572 |
|
Telex: |
837014 GAIN |
Product details ARCHIDROME buildings with semi-circular cross-section.
Built from self-supporting sections of galvanized steel; no trusses, rafters or stanchions. Standard range spans 6.5-21.6 m, with centre heights 2.9-6.1 m; other spans and building profiles also available. Steel gauge according to span.
Doors: double sliding doors.
Ventilation: side or ridge ventilators available as extras.
Foundation: Simple concrete perimeter foundations required.
|
Example |
Store: |
14 ft (42.7 m) centre height, 30 ft (9.1 m) internal span, 40 ft (12 m) overall length, double doors one end. Capacity 1 30 t bagged maize at 50% utilisation of volume. |
|
Price: |
£6,027 f.o.b. Rotterdam (based on mini-mum order 5 buildings). | |
|
Shipping: |
weight 3026 kg, palletized; load can be broken down for easy manhandling if required. Can be containerised. | |
|
Delivery: |
4-6 weeks. | |
Erection time: 10 days with supervisor and 3-4 helpers. Scaffolding required.
Supervisor: Available at approximately £165 per day + expenses.
|
CONPORT STRUCTURES LTD. | |
|
Address: |
11 Kings Road |
| |
Sloane Square |
| |
London SW3 |
|
Telephone: |
01 730 9105 |
|
Telex: |
919645 CONPRT G |
Product details Relocatable modular frameless building designed for quick erection and easy transport. Galvanized steel construction, colour coating available. Basic buildings 3.1 m height to eaves, either 7.5 x 19.9 m or 9.3 x 21.6 m; lengths can be increased in units of 1.8 m for both.
Doors: double hinged, 2.6 m wide.
Ventilation: ridge and gable-end ventilators available.
Foundations: Concrete perimeter strip usually required in sandy soil; ground spikes usually sufficient in clay.
|
Example |
Store: |
3.1 high x 9.3 wide x 23.4 m long with 4 ridge and 1 gable ventilator. |
|
|
Capacity 250 t at 50% utilization of volume. | |
| |
Price: |
£6,068 including erecting tower, tools and ground spikes. |
| |
Shipping: |
4.2 t, palletized: 4 buildings fit one 20 ft container (open topped) |
|
|
Delivery: |
ex-stock to 4 weeks |
|
Erection time: 1« days with supervisor and 3 helpers if foundation strip ready. | ||
|
Supervisor |
Available at a charge of about £750 per week + expenses. | |
|
MONATTA LTD. | |
|
Address: |
2 St Andrew Street |
| |
Plymouth |
| |
Devon |
| |
PL1 2AH |
|
Telephone: |
0752 221569 |
Product details A quick-assembly/dismountable building system, comprising 'Terryboard', a sandwich board of weather-and-boil-proof plywood and insulated corkboard, and plywood linking strips, wedges or bolts. Basic board available in 600 mm width, 70 mm thickness, lengths 2.4 m, 3 m and 3.6 m.
Doors: as required.
Ventilation: apertures easily cut, or ventilators inserted.
|
Foundations |
Not required- ballast used to anchor buildings. | |
|
Example |
Store: 12 ft high (apex) x 10 ft wide x 20 ft long (3.1 |
x 3.0 x 6.1 m). |
|
Price: |
basic board £15 per square metre. | |
|
Weight: |
basic board 12 kg/m². | |
|
Delivery: |
2 weeks. | |
|
Erection |
1« hours with 4 people, using prepared components. Alternatively can be constructed from basic board using hand drill and hand saw. | |
|
Supervisor |
Not required - assembly diagrams available. | |
|
QUADREM BUILDINGS LTD. | |
|
Address: |
Quadrem Buildings Ltd. |
| |
Frogmore Mill |
| |
Hemel Hempstead |
| |
Herts. |
| |
HP3 9RY |
|
Telephone: |
0442 54595 |
|
Telex: |
825815 |
Product details A stressed skin structure composed of heavy gauge galvanized steel arches. No structural framework required: 10 ft x 2 ft corrugated panels are bolted together to form an arch. Arches then raised and linked to complete the building. Available in spans from 20 ft to 80 ft (6.1 m to 24.4 m) and in any length.
Doors: standard sliding doors supplied 24 ft (7.3 m) wide, 14 ft (4.3 m) high; door and endwall combinations are variable to suit requirements.
Ventilation: circular ventilators, wind driven turbo-type fitted at the ridge £107 extra each.
Foundation: The normal foundation is a concrete perimeter strip
only 16 inches deep, in which is formed a trough to receive the ends of the arch
panels. This is then grouted to form a weathertight seal.
Example: Typical
store 42 ft (1 2.8 m) wide x 60 ft (1 8.3 m) long; centre height 21 ft (6.4 m);
capacity 400 tonnes of bagged maize at 70% utilisation.
Price: arches only:
£6,500 ex-works United Kingdom endwal I and doors: £2,500 ex-works
United Kingdom
Shipping weight: arches only: 3400 kg, 2 pallets 2 ft x 10 ft
x 4 ft (0.6 x 3.05 x 1.2 m) endwall and doors: 1600 kg, maximum length 14 ft
(4.27 m)
|
Delivery: |
ex-stock or 2-3 weeks ex-Toronto |
|
Erection time: |
5 days for first store, with supervisor and 4 helpers, if foundation strip is ready. Only light lifting gear or scaffolding is required. |
|
Supervisor |
Available at a charge of approximately £125 per day plus airfare and expenses. |
|
TERRAPIN LTD. | |
|
Address: |
Bond Avenue |
| |
Bletchley |
| |
Milton Keynes |
| |
MK1 1JJ |
|
Telephone: |
0908 74971 |
|
Telex: |
82468 |
Product details 'Incremented unit construction' using mass produced modules comprising rolled-steel structural members and composite insulated roof and wall cladding. Prefabricated units are transported in packs and then erected with speed.
Spans are 7.2 m, 9.6 m or 12.0 m; height 3.6 m or 4.8 m; length in increments of 3.6 m.
Doors: double sliding or 'up-and-over' doors.
Ventilation: trap door type available.
Foundations: Concrete pad.
Example: No specific details
available.
Erection time: Approximately 400 m³ of floor area per
day with a supervisor and three helpers. Scaffolding required, crane advisable.
|
C Framed structures with flexible cladding | |
|
Information |
Also |
|
given for |
supply |
|
each type |
types |
|
Airclad Ltd. |
C5 | |
|
Aldek AS |
C1 | |
|
Owen Brown & Son (Tents) Ltd. |
C1 | |
|
Cherwell Valley Silos Ltd. |
C1 | |
|
Clyde Canvas Goods & Structures Ltd. |
D4 |
C1 |
|
CY Inflatables Ltd. |
C5 | |
|
Germex-Gerhard Meyer & Co. |
C4 | |
|
Andrew Mitchell & Co. Ltd. |
D3 |
C1, D1 |
|
Naylor Buildings Ltd. |
C1 |
A1, A6 |
|
Rubb Buildings Ltd. |
C1 | |
|
Spandrel Hire Ltd. |
C1 | |
Sub-categories:
C1 Steel or aluminium frame with plastic cover
C2 Wooden
frame and canvas/plastic cover
C3 Wooden frame and woven mat cover
C4
Flexible silos supported with weldmesh
C5 Air-supported frame type; need
powered fan for inflation
|
AIRCLAD LTD. | |
|
Address: |
Langley House |
| |
Langley Hill |
| |
Nottingham |
| |
NG16 4AN |
|
Telephone: |
0773 768352/530777 |
|
Telex: |
377985 LANHSEG |
Product details Structure comprises a double skin membrane of UV-inhibited, fire-retardant PVC/nylon, supported by inflated air under low pressure. A wide range of sizes is available.
Doors: flexible, soft-sliding
Ventilation: any area can be specified at no extra cost.
Foundations: None; structure is held down with ground anchors and tensioned ropes.
|
Example |
Store: |
5 m high at centre x 10 m wide x 20 m long. Capacity 780 m³ or 200-250 t bagged maize at 50% utilization. |
|
Price: |
£9,483, including a 2 kW 3-phase electric fan for inflation. | |
|
Shipping weight: |
building 820 kg, fan 30 kg; total 3 m³. | |
|
Building can be sectionalised for easier handling, at additional cost. | ||
|
Delivery: |
5 weeks. | |
|
Erection time: |
1-2 hours maximum. |
|
|
Supervisor |
Not required. |
|
|
ALDEK AS | |
|
Address: |
7 Thorslundsveg |
| |
DK-5100 Odense |
| |
Denmark |
|
Telephone: |
(09) 1122 33 |
|
Telex: |
59912. |
|
Cable: |
aldekaldek |
Product details Four ranges of structures, comprising a galvanized steel lattice frame with a cover of PVC-coated nylon or polyester fabric. One range of frames may also be clad with steel sheets.
Seven spans available in the range 5-25 m. Lengths according to requirements in increments of 2 m, 3 m or 4 m.
Doors: usually hinged, wood or metal; sliding doors also supplied.
Ventilation: by arrangement.
Foundations: Concrete pad foundations for permanent
installations. All except one range of buildings may also be anchored by strong
earth rods.
Example No details available.
|
OWEN BROWN & SON (TENTS) LTD. | |
|
Address: |
Bishop Meadow Road |
| |
Loughborough |
| |
Leicestershire |
| |
LE11 ORQ |
|
Telephone: |
0509 214334 |
|
Telex: |
342392 OBROWN G |
Product details Structure of portal frame or polygon design made from anodised hollow aluminium profiles, covered with PVC-coated Trevira fabric. Eaves height 3.4 m or 4.2 m; spans from 3.87 m to 40 m; lengths as required in 5 m modules. Steel sheet cladding can also be used on vertical walls.
Doors: fabric or rigid doors can be installed in any position.
Ventilation: eaves ventilation possible at additional cost.
Foundations: 0.75 m stakes in well-prepared ground; concrete ring beam required for sand.
|
Example |
Store: 3.4 m high x 12.5 m wide x 30 m long. Ref. KF 125. |
||
| |
Price: £19,500 ex-works. | ||
| |
Shipping weight: approximately 3750 kg. | ||
| |
Delivery: |
6-8 weeks. | |
| |
Erection time: |
under « day (1000 m²/day). |
For 25 m span crew of 8 required but fewer for this building. No special equipment needed. |
|
Supervisor |
Available at £132 per day + expenses. | ||
|
CHERWELL VALLEY SILOS LTD. | |
|
Address: |
Twyford |
| |
Banbury |
| |
Oxfordshire |
| |
OX17 3AA |
|
Telephone: |
0295 811 441 |
|
Telex: |
83477 |
Product details Low profile steel-framed plastic structures designed for rapid erection with minimum site preparation. Cover of heavy-duty PVC-coated polyester, UV-resistant. Lightweight tubular steel arches and purling. A butyl rubber floor is optional.
Standard span 11 m, length in modules of 12 m, height 3 m (average).
Alternative designs are available for structures up to 30 m span.
Doors: double sliding 2.5 x 2.5 m are standard.
Ventilation: gable-end ventilators included.
Aluminium framed designs also available.
Foundations: Ground anchors, or bolted to existing concrete slab.
|
Example |
Store: |
3 m high x 11 m wide x 24 m long. |
| |
Capacity at 60% utilisation, 320 t bagged maize. | |
| |
Price: |
£1 8,000 ex-works, floor extra. |
| |
Shipping weight: |
5200 kg, 16 m³; floor 660 kg, 2 m³ extra. |
| |
Erection time: |
2 to 3 days with supervisor and 3-4 helpers. No special tools needed. |
|
Supervisor |
Available at approximately £150 per day + expenses. |
|
|
CY INFLATABLES LTD. | |
|
Address: |
Unit 1 A, Queniborough Industrial Estate |
| |
Melton Road |
| |
Queniborough |
| |
Leicestershire |
|
|
LE7 8FP |
|
Telephone: |
0533 602506 |
Product details Flexible structure with inflated tubular 'frame', constructed from nylon-reinforced PVC. Designed in units, maximum 10 m width, 10 m length, which can be joined, but each unit requires a fan. A floor sheet can be included.
|
Doors: PVC flexible doors on end. | |
|
Foundations |
None required. |
|
Example |
Store: 10 m wide x 10 m long. |
| |
Price: £5,350 ex-works. |
| |
Shipping weight: 350 kg, 1.5 m³ approx. |
| |
Delivery: 4 weeks |
| |
Erection time: 10 minutes. |
|
Supervisor |
Not required. |
|
GERMEX-GERHARD MEYER & CO. | |
|
Address: |
2000 Hamburg 76 |
| |
Landwehr 25 |
| |
Federal Republic of Germany |
|
Telephone: |
(040) 2 50 10 88 |
|
Telex: |
213051 GERMX D |
Product details Flexible silos comprising bottom liner and roof cone each of one piece, hf-welded. Material polyester-fabric coated with several layers of different plastic coatings. Specifically developed for grain storage. Liner material offers high resistance to PH3 penetration. Seal of bottom liner against roof cover by special spring-loaded peripheral cord plus roll-connection of aprons with locking rope and padlock. Surrounding wall of welded steel mesh, pre-shaped segments of about 127 cm width x 245 cm height, screwed together by high tenacity steel bolts. All segments hot-dip galvanized. Rodent barrier of corrugated galvanized-steel sheet.
Storm net: pre-knit net of weather-resistant plastic ropes, pulled over the roof and fixed to the grill wall.
Nominal capacities of 250 t, 500 t, 750 t and 1000 t available.
The silos may be used for grain in bags as well as for loose grain. Usually they are loaded with bagged grain. The silos are supplied with an anti-condensation liner, which is fitted under the roof cover to ameliorate the effects of moisture migration.
|
Foundations |
None. Level site free from debris is required. |
|
Example |
Standard: 500 t silo. |
| |
Price: DM 41 000 ex-works. |
| |
Shipping weight: 2500 kg approximately. |
| |
Erection time: 4-5 hours with 4-6 semi-skilled workers. |
| |
Toolkit and repair kit supplied. |
|
NAYLOR BUILDINGS LTD. | |
|
Address: |
Romney House |
| |
Wolverhampton Street |
|
|
Darlaston |
| |
West Midlands |
| |
WS10 3UB |
|
Telephone: |
021-526 3851 |
|
Telex: |
338499 Romney G |
Product details* Super lightweight Romney; tubular aluminium frame with aluminized canvas/plastic cover giving semi-circular cross section building. Basic size as example below but other sizes available.
Doors: roll-up flexible door is standard.
Ventilation: gable-end screened ventilators available.
Foundation: Concrete strip foundation essential, drawing supplied.
|
Example |
Store: |
5.5 m maximum height x 12.3 m wide x 25 m long. Volume 1280 m³, will store 500 t bagged maize at 50% utilisation. |
|
Price: |
£7,150 ex works. | |
|
Shipping weight: |
1010 kg, 5.2 m³; 4 packages. | |
|
Delivery: |
2-4 weeks. | |
|
Erection time: |
2 days with supervisor and 3 helpers. Scaffold tower advisable | |
|
Supervisor |
Available at approximately £150 per day + expenses. |
|
|
RUBB BUILDINGS LTD. | |
|
Address: |
Dukesway |
| |
Team Valley Trading Estate |
| |
Gateshead |
| |
Tyne and Wear |
| |
NE11 0QE |
|
Telephone: |
091 482 2516 |
|
Telex: |
537756 Facsimile: 091 482 2516. |
Product details Structures have galvanized steel frames and PVC-coated polyester covers; for tropical use the cover is fire-retardant, UV-stabilised, and pigmented white. The THA range has spans from 6 m to 15 m, with lengths in multiples of 3 m, and includes a foundation beam. Other ranges permit spans up to 40 m and eaves heights of 6 m or more.
Doors: PVC folding doors, lockable. Lace-up door available at reduced price.
Ventilation: sloping ducts in gable ends.
Foundations: Depending on site conditions, steel spikes, ballast weight or concrete ringbeam may be used.
|
Example |
Store: |
3.3 m high (eaves) x 12 m wide x 24 m long. Capacity at 60% volume utilization, 400 tonnes maize. |
|
Price: |
£9,080 ex works. | |
|
Shipping weight: |
4439 kg, 8.5 m³. Estimated that 4 units can be shipped in a 20 ft container. | |
|
Delivery: |
normally from stock. | |
|
Erection time: |
1 day for first store; supervisor and 3 helpers. Crane not required for erection; hand tools and ladders supplied with the store. |
|
|
Supervisor |
Available at £15 per hour plus expenses. | |
|
SPANDREL HIRE LTD. | |
|
Address: |
Armadale Road |
| |
Feltham |
| |
Middlesex |
| |
TW14 OLR |
|
Telephone: |
01 751 4464 |
|
Telex: |
24851 |
Product details Aluminium-framed structures with covering of PVC-coated high-tenacity polyester. Spans from 20 ft to 60 ft (6.1 m to 18.3 m) available. Doors and ventilation as required.
|
Example |
No details available. | |
|
D Frameless flexible systems | | |
|
Information |
Also given for supply each type types | |
|
Calnay Ltd. |
D3 | |
|
The Canvas and Nylon Company |
D1 | |
|
Clyde Canvas Goods and Structures Ltd. |
D4 |
C1 |
|
Fell-Fab (United Kingdom) Ltd. |
D3 | |
|
Andrew Mitchell & Co. Ltd. |
D3 | |
|
Moreland Tarpaulins Ltd. |
see | |
|
Visqueen | |
|
|
Scandinavian Hovercraft Promotions AS |
D4 | |
|
Singleton Flint |
D3 | |
|
Visqueen Polythene Film Products imperial |
D3 | |
|
Chemical Industries Plc | | |
|
WS Surplus Supplies Ltd. |
D1 | |
Sub-categories:
D1 Marquee tents, often used for refugees, can be used for
stocks
D2 CAP, see Appendix 6.
D3 Tarpaulins only or plastic sheeting
preferably with reinforced eyelets.
D4 Airwarehouse pressure supported.
D5
Polyethylene (black) sheet with eucalyptus poles.
|
CALNAY LTD. | |
|
Address: |
Maerdy Industrial Estate |
| |
Rhymney |
| |
Gwent |
| |
NP2 5XG |
|
Telephone: |
0685 840672 |
|
Telex: |
497666 |
Product details Polyethylene film up to 17.5 m wide without joins, of thickness from 100æm to 1000æm (400-4000 gauge). Reinforcing, UV-inhibitors and colours as required.
Also: emergency tent comprising one-piece white polythene cover with sectional frame of polypropylenel/PVC pipe.
|
Examples |
1) Sheet 13 x 18 m, 375 æm, with eyelets at 1 m spacing. |
| |
Price: £76 |
| |
Shipping weight: 82 kg. |
| |
Delivery: 1-5 days. |
| |
2) Emergency tent 2.2 m high, 4 m wide, 3 m deep. |
| |
Price: £115 f.o.b. United Kingdom airport. |
| |
Shipping weight: 30 kg. Crate of 12 units 400 kg, 3.15 m³. |
| |
Delivery: ex-stock. |
|
THE CANVAS AND NYLON COMPANY | |
|
Address: |
North Street |
| |
Winkfield |
| |
Nr Windsor |
| |
Berkshire |
|
|
SL4 4TF |
|
Telephone: |
0344 882539 |
Product details Marquee tents; cover of white canvas, 15 oz/ydý (510 g/m²), solar reflectant, UV-protected and weatherproof; wooden poles.
|
Foundations |
Not required. | |
|
Example |
Tent: |
6 ft high (eaves) x 20 ft wide x 63 ft long |
| |
(1.8 x 6.1 x 19.2 m) |
|
|
|
Price: |
£2,800 |
| |
Shipping weight: not available. | |
| |
Delivery: limited supplies ex-stock | |
| |
Erection time: « day with 10 people, and Landrover to pull up. | |
|
Supervisor |
Not available. | |
|
CLYDE CANVAS GOODS AND STRUCTURES LTD. | |
|
Address: |
42 North Bar |
| |
Banbury |
| |
Oxfordshire |
| |
OX16 OTH |
|
Telephone: |
0295 61511/2 |
|
Telex: |
837912 |
Product details Single-skin flexible structure supported solely by internal pressure from a continuously running fan. Standard shapes are designed to give maximum usable space compatible with optimum performance under wind loadings; widths 15-35 m, lengths 15-120 m, centre height 7-9 m. Normally the main fan is electric, requiring a 3-phase supply of adequate rating, with a diesel engine driven fan as standby.
Doors: double airlock doors, normally timber construction.
Ventilation: the designed leakage from the structure (1.4 m³/min per metre linear circumference) provides some ventilation (about 1 or 2 air changes per hour); this can be increased using flaps in the roof fabric or louvres in emergency doors.
|
Foundations |
Concrete ring beam or ground anchors. |
|
Example |
No details available. |
|
Supervisor |
Necessary for erection, at customer's expense. |
|
Note: |
The company also supplies steel and aluminium-framed flexible-clad structures. |
|
FELL-FAB (United Kingdom) LTD. | |
|
Address: |
7 Lenton Drive |
| |
Parkside Industrial Estate |
| |
Leeds |
| |
LS11 5JW |
|
Telephone: |
0532 70467 |
|
Telex: |
557948 |
Product details Tarpaulins of reinforced polyethylene sheet: reinforcement 10 x 10, 1000 denier synthetic threads, laminations of 30 microns polyethylene.
Standard sizes: 18 x 12 ft; 21 x 15 ft; 24 x 18 ft; 30 x 23 ft; 40x23ft. (5.5x3.6m;6.4 x 4.6 m;7.3xS.5m;9.1 x7.0 m; 12.2 x 7.0 m)
|
Example |
Sheet: 9.1 x 7.0 m. |
| |
Price: £23 each, reducing for large orders. |
| |
Shipping weight: 10 kg (estimated). |
| |
Delivery: 3-5 days. |
|
Supervisor |
Not applicable. |
|
ANDREW MITCHELL & CO. LTD. | |
|
Address: |
Bishop Works |
| |
Amulree Street |
| |
Glasgow |
| |
G32 7SL |
|
Telephone: |
041 778 5461 |
|
Telex: |
77393 |
Product details Tarpaulins supplied complete with eyelets and ropes. Two materials are available: V12P PVC-coated polyester, 17 oz/ ydý (578 g/m2), and AMPLS, a laminated PVC-reinforced with polyester netting, total 348 g/ m². The materials can also be supplied as rolls 1.5 m and 1.37 m wide respectively, for local fabrication. Both of these materials are suitable for use in undersheet fumigation.
|
Example |
Sheet: |
60 x 40 ft (18 x 12 m) nominal |
|
Price: using V12P, £540 f.o.b. United Kingdom port. using AMPLS, £395 f.o.b. United Kingdom port. | ||
|
Shipping weight: V12P, 137 kg | ||
|
AMPLS, 90 kg | ||
|
Delivery: 6-8 weeks. | ||
|
SCANDINAVIAN HOVERCRAFT PROMOTIONS AS | |
|
Address: |
Stortingsgt. 14 |
| |
Oslo 1 |
| |
Norway |
|
Telephone: |
41 49 74/41 30 31 |
|
Telex: |
16128 |
Product details Air warehouse comprising skin of PVC-coated polyester supported by increased air pressure from continuously-running fans. Span 16-35 m, lengths 24-90 m in standard range.
Doors: variety of airlock doors available, normally folding steel.
Ventilation: air exchange due to inflation fan only.
|
Foundations |
Concrete ring beam, ground anchor cable, or ballast according to site conditions. |
|
Example |
No details available. |
|
Supervisor |
Available at about £200 per day, plus expenses. |
|
SINGLETON FLINT | |
|
Address: |
Newland Works |
| |
Deacon Road |
| |
Lincoln |
| |
LN2 4LE |
|
Telephone: |
0522 24542 |
|
Telex: |
56246 |
Product details 'Lynkon Nicotarp' tarpaulins made from woven polyethylene tape fabric laminated with polyethylene both sides, UV-inhibited; supplied complete with eyelets and ropes. Range of standard sizes and to order, maximum width normally 6 m. Tarpaulins of other materials also available.
|
Example |
Sheet: 20 x 80 ft (6 x 24 m) nominal |
| |
Price: £112 each (for order of 10 or more sheets) |
| |
Shipping weight: 30 kg |
|
Delivery: |
usually ex-stock or 7 days. |
|
VISQUEEN POLYTHENE FILM PRODUCTS IMPERIAL CHEMICAL INDUSTRIES PLC | ||
|
Address: |
Yarm Road |
Distributor: |
| |
Stockton-on-Tees |
Moreland Tarpaulins Ltd. |
| |
Cleveland |
Britannia Works |
| |
TS18 3RD |
25 St Pancras Way |
| |
|
London NW1 0QB |
|
Telephone: |
0642 672888 | |
|
Telephone: |
01 387 5210 | |
|
Telex: |
58509 | |
Overseas enquirers shuld contact Visqueen initially
Product details Toughened black UV-inhibited polyethylene sheet, 250 m or 375 m thick. Supplied as rolls, or as cut sheets with eyelets and ropes, maximum width 7.5 m.
|
Example |
Sheet: |
7.5 x 10 m, 375 m; with eyelets and ropes. |
| |
Price: |
£67.76, f.o.b. Reduction for orders of 10 sheets. |
| |
Shipping weight: |
33 kg. |
| |
Delivery: |
ex-stock to 7 days. |
|
WS SURPLUS SUPPLIES LTD. | |
|
Address: |
Mill Street |
| |
Eynsham |
| |
Oxford |
|
Telephone: |
0865 881541 |
|
Product details |
Renovated marquees 20 ft (6.1 m) wide x 63 ft (19.2 m) long x 6 ft (1.8 m) to eaves. |
|
Packed in six packages weighing 400 kg in total for export. | |
|
Price |
£950 ex-works. |
|
Delivery |
Ex-stock. |
|
The following manufacturers may be contacted if no local timber or dunnage is available: | |
|
W Groom Ltd. |
R Jewson & Sons |
|
Benner Road |
Toynbee Road |
|
Pinchbeck |
Eastleigh |
|
Spalding |
Hampshire |
|
PE11 JUG |
SO5 4YF |
|
Tilgate Pallets Ltd. |
Unit Pallets Ltd. |
|
Brighton Road |
Golborne |
|
Crawley |
Warrington |
|
RH11 9BH |
WAS 3RN |
The trade association:
Timber Packing and Pallet Confederation (TIMCON)
5 Greenfield Crescent
Edgbaston
Birmingham B15 3BE
can advise names of additional manufacturers.
Pallets are costly to send by sea or air freight and local assembly of pre-cut components is a possible alternative.
Tendering
It is the purchaser's responsibility when preparing tender forms to request the vendor to answer the following:
(i) What is the structure design wind speed?
(ii) What form
of foundation is supplied for sandy soils? Does this affect (i)?
(iii) Is the
structure designed for tropical exposure, i.e. are all parts, including ropes,
UV-resistant?
(v) Is erection without a supervisor practical? Have visual
instructions and local language manuals been printed and are 6 copies supplied?
When evaluating tenders, the purchaser must check the data on
designed wind loading against recorded local gust speeds, to determine that the
structure is safe.
Where possible, purchasers should ask for a demonstration
to judge for themselves ease of erection/relocatability.
Site selection
A level site protected from flooding with good access is vital. If possible the site should be in an area without strong winds or it should be protected from wind. ALWAYS ASK LOCAL PEOPLE ABOUT POTENTIALLY WINDY SITES.
Installation
The purchaser should ensure
(i) That the supplier's engineer/supervisor will be available
for erection overseas.
(ii) That erection and loading only take place in dry
calm weather.
(iii) That the relief food is inspected to prevent wet sacks
being loaded.
and should take these steps prior to erection of stores:
(i) Clear vegetation from site.
(ii) Mark out store bases at
least 6 m apart to allow for lorry access.
(iii) Clear the base of stones and
sharp objects which can damage tarpaulins, etc.
Suppliers should provide supervision and training in erecting the structures as part of the contract, even if charged separately. Users should recruit a reliable foreman and understudy at each site to take full advantage of this service. With the foremen and his understudy as the nucleus, a trained erection team can be formed to ensure the success of future operations.
 |
 |
